We put our energy into the development of your chain conveyor so you can save energy when running it

A chain conveyor from FM Bulk Handling – Fjordvejs is an energy-efficient and reliable solution. It will reliably move your products all day long, every day, all year round without damaging them and without unnecessary down time.

Our products are always manufactured using tough materials that can withstand daily operations for many years. These materials include steel painted in your preferred RAL colour, hot-dip galvanised or stainless steel, AISI 304 or AISI 316. Our machines are designed to operate 24/7, 365 days a year.

Contact us today

+45 97 58 42 00
post@fmbulk.com

Standard Chain with Standard Carriers

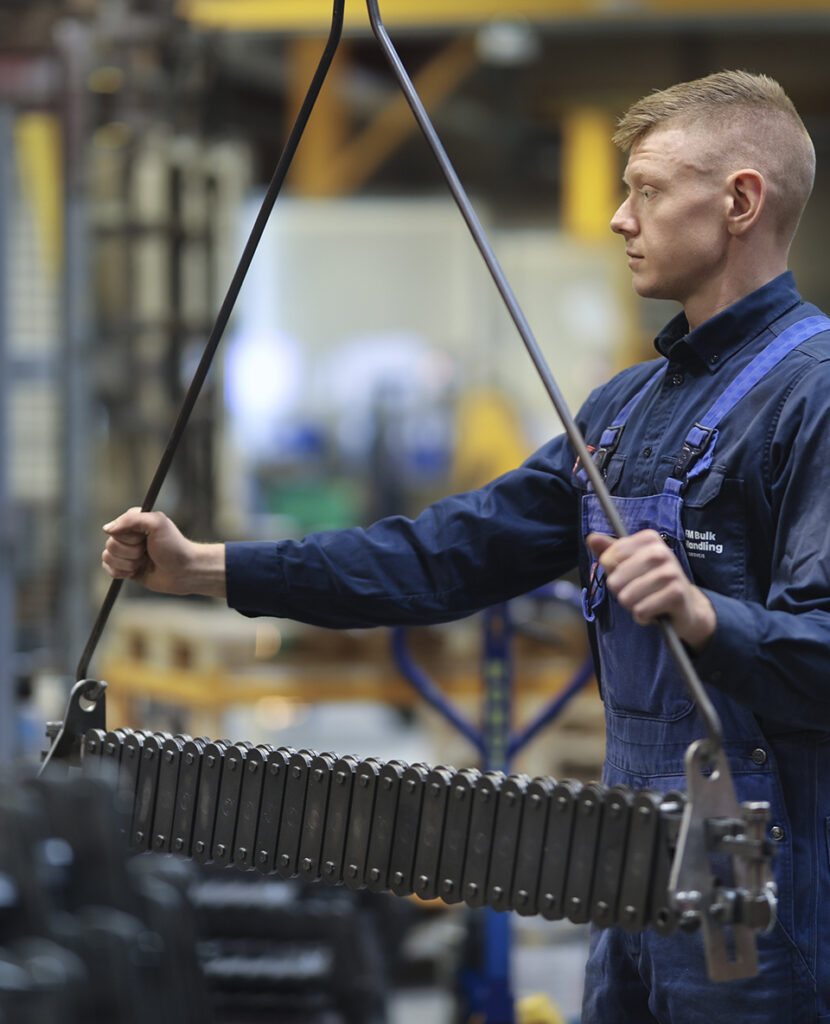

Our standard redler chain is our best-selling chain product. The chain serves as the foundation for our other chain solutions, where additional accessories can be added for more demanding production environments. The chain is manufactured from black steel and designed with extra-thick carriers to prevent breakage during operation.

Standard chain with non-friction scraper

Non-friction scrapers can be added to our standard chain. These non-friction scrapers keep the chain conveyor clean and prevent dust or meal from sticking to the surfaces. As a result, the conveyor does not need to be opened as frequently for cleaning. Two sets of scrapers are installed per five meters of chain.

Redler chain with return cups

Return cups are typically selected when the chain conveyor has a closed end. Material that would otherwise accumulate at the end of the conveyor is continuously removed. The cups are manufactured from heavy-duty, bent black steel and are installed at one-meter intervals along the chain

FM Bulk Handling – Fjordvejs chain conveyor standard

The chain is normally supplied as a scraper chain with steel retainers. Other types of chain and retainer can be selected, depending on the type of material you need to transport.

The bottom always has a 10 mm Nonfric wear plate to protect against wear. This ensures a long service life and makes the machine quieter.

The installation of an intermediate bottom to a chain conveyor makes it possible to prevent the bridging of materials that can be difficult to keep under control, such as fish meal , soya, meat and bone meal etc. The intermediate bottom always has a 10 mm Nonfric wear plate. For sticky products like fish, meat and bone meal, we offer alternative intermediate bottom coatings to Nonfric.

The intake pit can be supplied with a non-slip grid for vehicles that can withstand wheel loads of up to 8 tons.

Suspended or on legs: Your chain conveyor can stand on legs or be suspended from mounts. It's up to you. Legs and mounting brackets are fitted to the sides of the chain conveyor, allowing the removal of the bot-tom plate, such as when replacing the Nonfric wear plate when it is worn out.

Motor

We use different types of gear motors for our chain conveyors, depending on materials, capacity and running time, or if you have specific requirements:

Helical gear motor
Parallel shaft helical gear motor
Helical bevel gear motor

Our motors are fitted to heavy-duty motor brackets.

Chain conveyor customisation options

FM Bulk Handling – Fjordvejs chain conveyors can be supplied with the following equipment:

Overflow flap with switch

Speed monitoring protection

Inspection porthole

Return rail

Aspiration connector

Side inlet

Double base for intake pit with integrated chain conveyor in the intake

Reversible drive terminal - if you want to run a long chain conveyor in both directions

Round return end prevents material from sticking or accumulating. The return end has a 10 mm Nonfric wear plate.

Split sprockets mean easier service and maintenance without necessitating gear motor and axle removal

30° cover, for improved water repellency. For long free spans, a 30° cover is always fitted.

Outlet shutter: manually operated, pneumatic or with gear motor. All have indicators. The shutter brush can be loose-hanging for light products or operated pneumatically when working with difficult or heavy materials.

Return buckets to carry residue back to the selected outlet

If required, FM Bulk Handling – Fjordvejs can supply chain conveyor to ATEX standards.
